Crop Chaser 1000

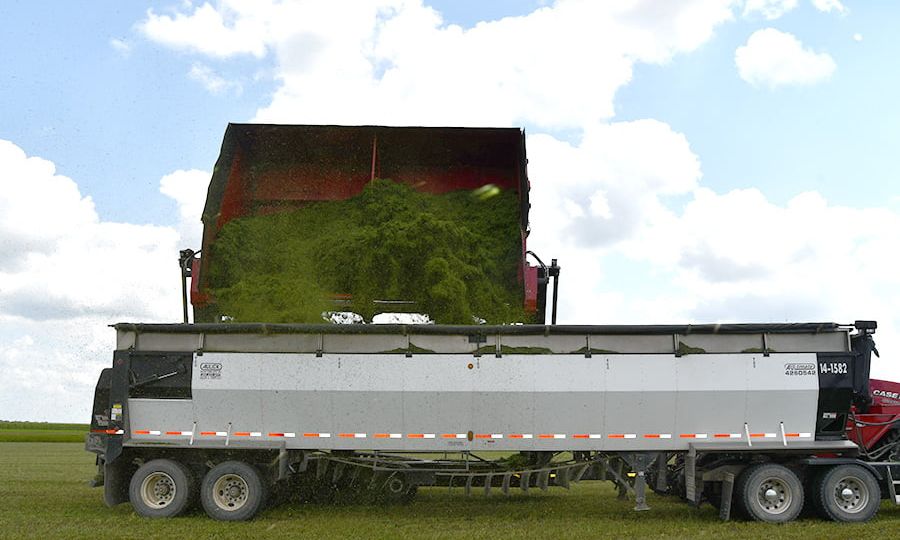

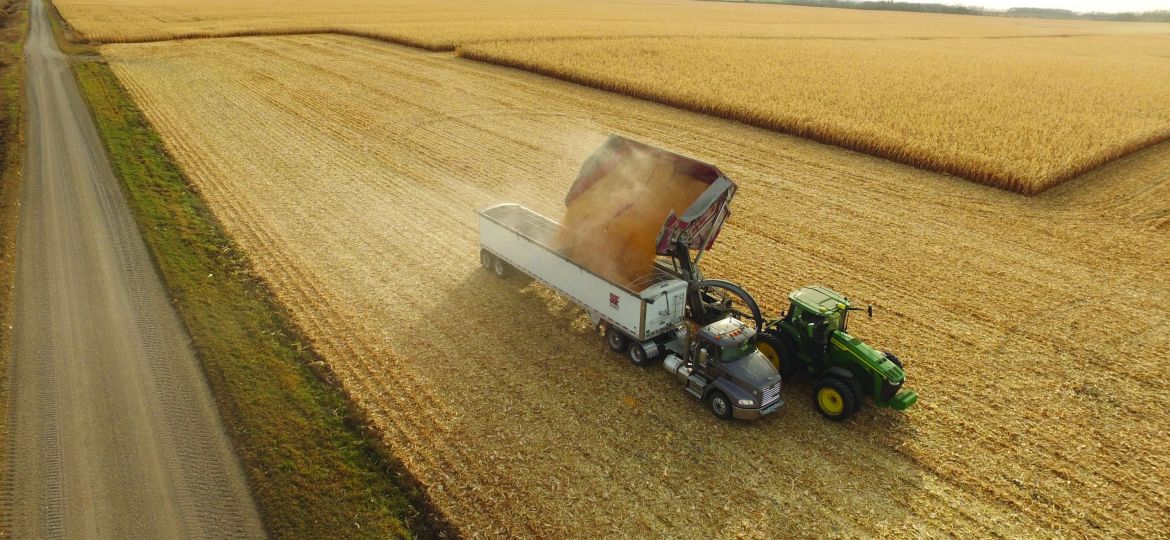

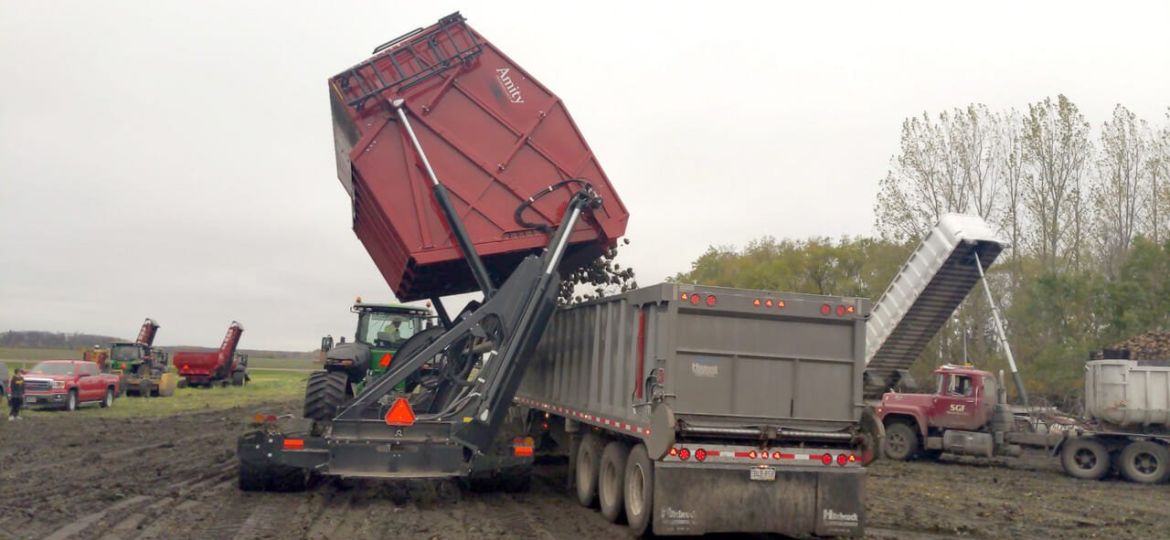

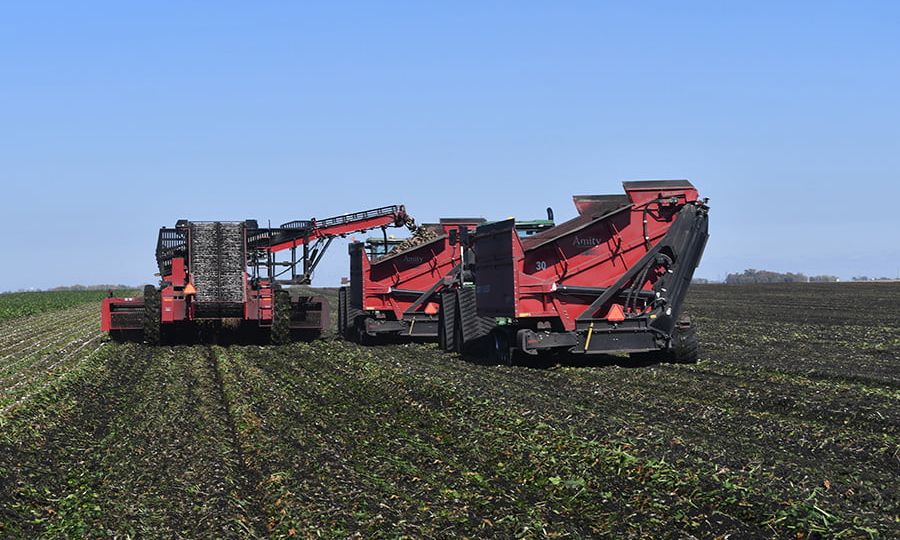

There are dump carts, and then there is the Amity Crop Chaser. The Crop Chaser 1000 single-tank multi-crop cart adds a new level of efficiency to your farming operation! The patented design of this high-capacity, track-driven dump cart with integrated scales offered unmatched logistical benefits in any field condition. Transitioning between crops is as easy as cleaning out the tank – easily switching between silage, corn, beans, small grains, and sugar beets.
Grower Focused
The Crop Chaser 1000 Multi-crop Cart was developed by working closely with producers and custom operators to incorporate the benefits needed for today’s harvest demands.
Improved logistics
The Crop Chaser 1000 Multi-crop Cart was developed by working closely with producers and custom operators to incorporate the benefits needed for today’s harvest demands.
Field-proven solutions™
Multi-crop

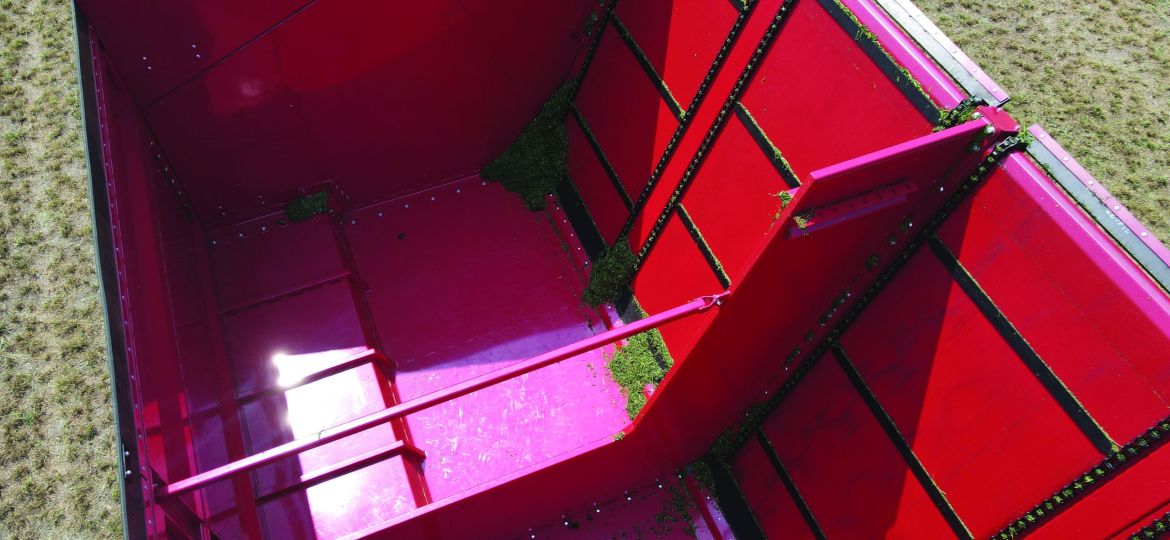

The CC1000 easily transitions between crops. Just clean and go, saving valuable time in a busy season.
Live unload chains

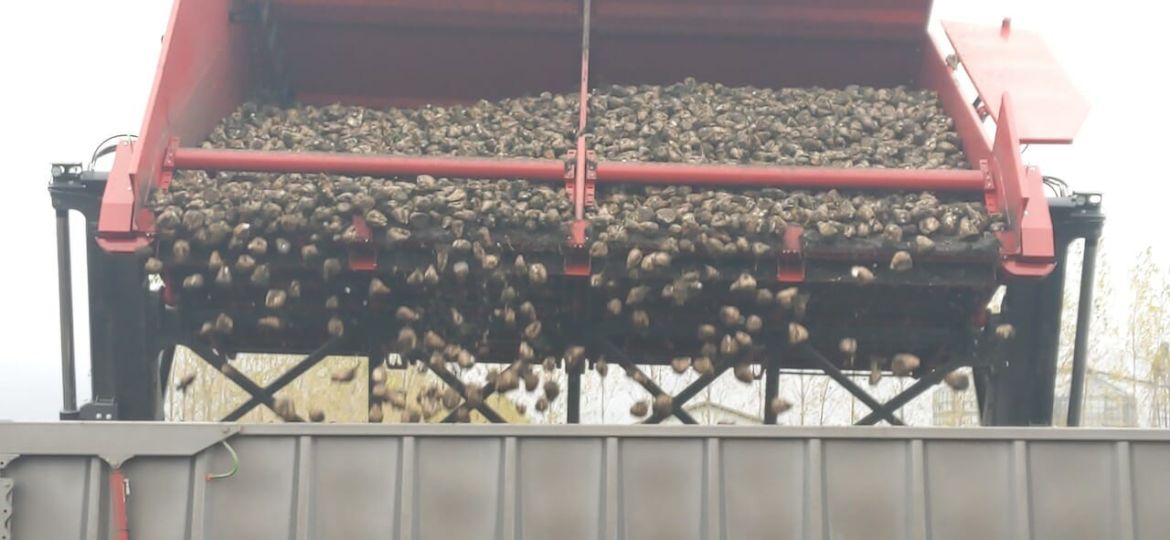

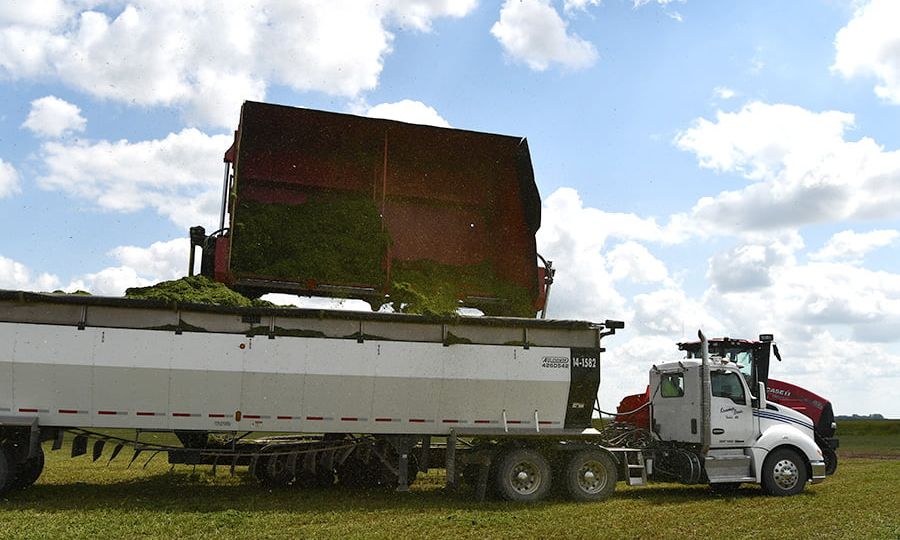

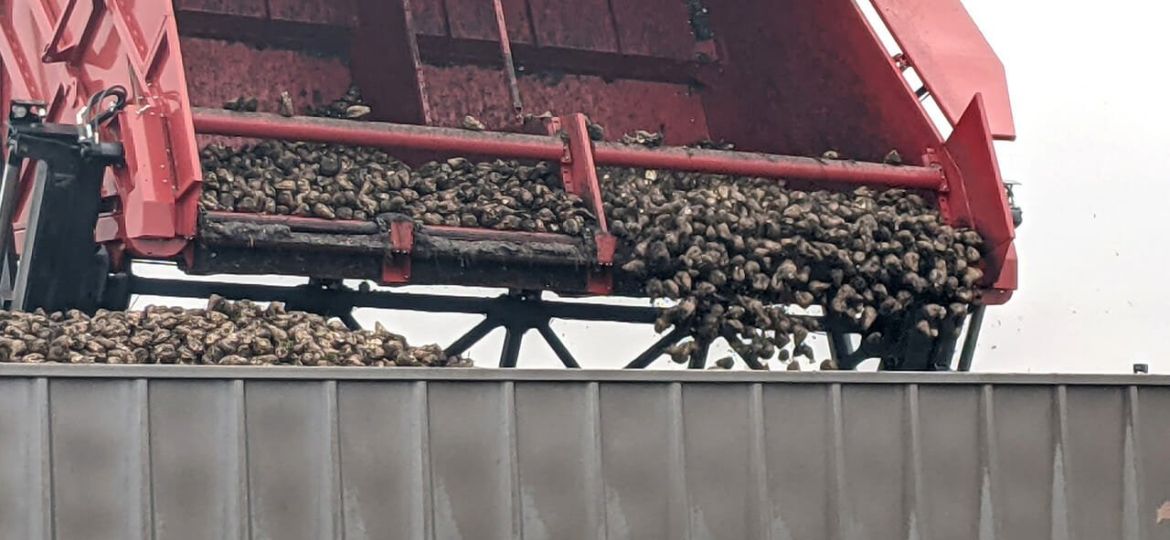

Live unload chains on the Crop Chaser 1000 help to even out loads while getting the maximum capacity on the truck. Crop Chaser uses four hydraulic remotes for the tank lift cylinders and front/rear unload chains for maximum control over the dump rate.
High Capacity
The Crop Chaser 1000 has a weight capacity of up to 80,000 pounds, making it versatile for many crops.
Crop Chaser 1000 Features
Onboard scale
The Libra Cart scale system has sensors that provide a highly accurate weight measurement for each load.
Work Lights/cameras
Work lights provide excellent visibility in times of low natural light. Optional camera systems monitor the loading and unloading process from the cab.
Tracks

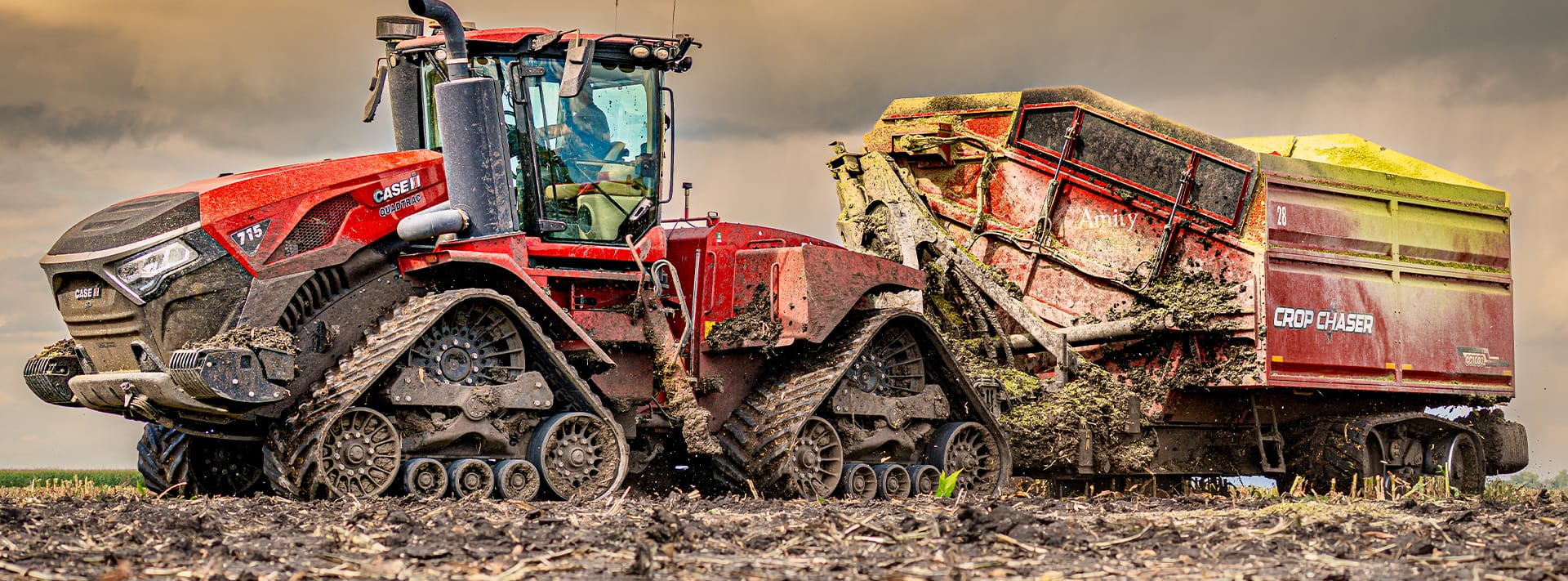

Crop Chaser Multi-crop carts feature industry leading 36″ x 136″ tracks, which are rated for speeds of up to 20 miles per hour. Tracks minimize compaction and are much better suited for use in wet conditions than competitive carts with tires. When fully loaded, the CC1000 only exerts 16.0 psi with a load of 80,000 pounds.
CC1000 Multi-crop Cart Specifications | |
|---|---|
| Weight (approx.) | 48,000 lbs |
| Capacity (Struck) | 1,800 ft3 |
| Capacity (Weight) | Top Pin Location: 65,000 lbs Middle Pin Location: 72,000 lbs Bottom Pin Location: 80,000 lbs |
| Max Tank Angle | Top Pin Location: 43° Middle Pin Location: 26° Bottom Pin Location: 13° |
| Total Length (w/ scale system) | 35′ 5″ |
| Total Width (transport & field) | 14′ |
| Total Height (transport & field) | 13′ 6″ |
| Transport Speed (empty) | 20 mph |
| Operating Speed (loaded) | 10 mph |
| Fill Clearance | 11′ 2″ |
| Unload Clearance | 12′ 4″ |
| Tank Discharge Length | 20′ 6″ |
| Hydraulic Remotes Required | 4 |
