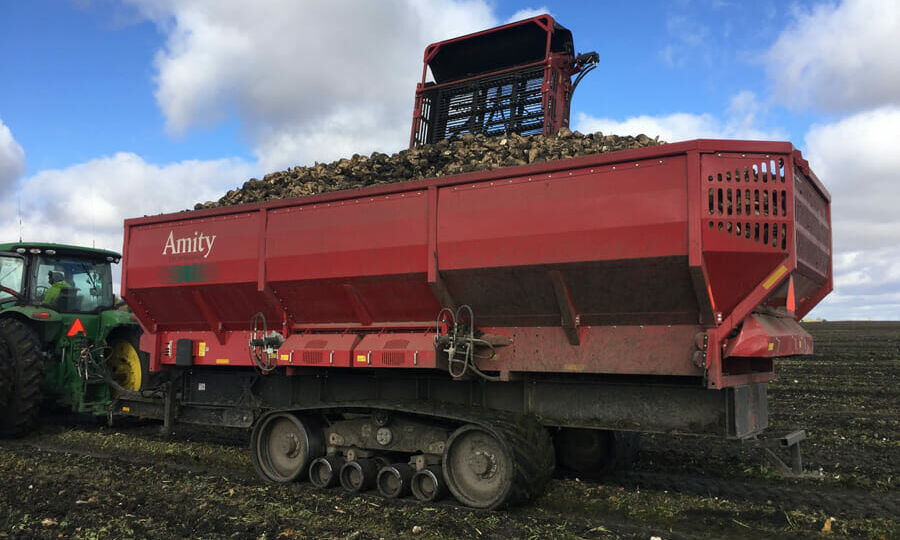

Sugar Beet Cart
The Amity Technology Sugar Beet Cart is a field-proven solution for efficient transport in all field conditions. During the fast pace of sugar beet harvest, efficiency is a key to success. The high-capacity tank and unloading elevator of the Sugar Beet Cart keep harvesters moving in the field and trucks rolling.
Unloading capacity
Capable of unloading up to 30 tons per minute, the Amity Technology Sugar Beet Cart quickly turns trucks and gets them back on the road, no matter the field conditions.
Tip Tops
Tip Top load enhancers are available for the Amity Technology Sugar Beet Cart.
Light Footprint
The 36″ x 136″ tracks reduce ground pressure versus tires. The light footprint allows the sugar beet cart to work in wet conditions when other carts or trucks simply cannot.
Service and Support
With the best dealer network, Amity Technology parts and service are available when you need them most!
Field-proven Solutions™
Optional on board scale
An optional on board scale ensures trucks leave the field full, but not overweight. Choose from wired or wireless options.
Narrow Design
Tracks on the Amity Sugar Beet Cart are underneath the box. So, the working width and transport width are just 11.5 feet. The narrow design means increased clearance between the harvester and cart.
Better Visibility
Work lights provide excellent visibility in times of low natural light. During overnight shifts, everyone will be able to see better.
Sugar Beet Cart Features
Left or right discharge
The Amity Sugar Beet Cart can be ordered with either left or right hand discharge. Plus, the unloading elevator has the flexibility to build a clamp or fill a truck without changeover.
Ease of Operation
The unique design of the Amity Sugar Beet Cart’s hydraulic system eases the unloading process.
Optional on board hydraulics
The optional PTO-driven on board hydraulic system of the Amity Sugar Beet Cart drives the boom for tractors with lower hydraulic capabilities.
Unloading Speed | 6 to 30 tons/minute |
|---|---|
| Capacity | 35 tons |
| Power Required (PTO) | 300 hp |
| Maximum Transport Speed | 15 mph |
| Track Measurements | 3’ x 11’ 4” |
| Hydraulic Remotes | 4 |
| Hydraulic Capacity | 45 gpm* |
| Hydraulic Pressure | 2,700 psi |
| Field Position | |
| Length | 35’ |
| Width | 11’ 6” |
| Height | 19’ |
| Transport Position | |
| Width | 11’ 6” |
| Height | 12’ |
| Discharge | left or right |
*tractors with less than 60 gpm will need on board hydraulics to acheive unloading rate
